Notes taken from watching “Docker for Web Developers” by Dan Wahlin on Pluralsight

What is Docker?

• Lightweight, open, secure platform
• Simplify building, shipping, and running apps
• Shipping container system for code
• Without standard-size shipping containers, real-world shipping was needlessly complex. Now, they have standard size containers and transportation is simple and efficient. Docker is the same way.
• Runs natively on Linux or Windows Server >2016
• Relies on “images” and “containers”
  • Image:
    • simply the definition or blueprint of a virtual machine. Has the necessary files to run something, for example an app, database, etc, and the support files for these.
    • A read-only template composed of layered filesystems used to share common files and create Docker container instances
  • Container:
    • created using an image. Runs you application.
    • isolated and secured shipping container created from an image that can be run, started, stopped, moved, and deleted very quickly
• The Docker Client runs in on the Docker Engine, which integrates with Linux Container Support (LXC) on Linux or Windows Server Container Support on Windows.

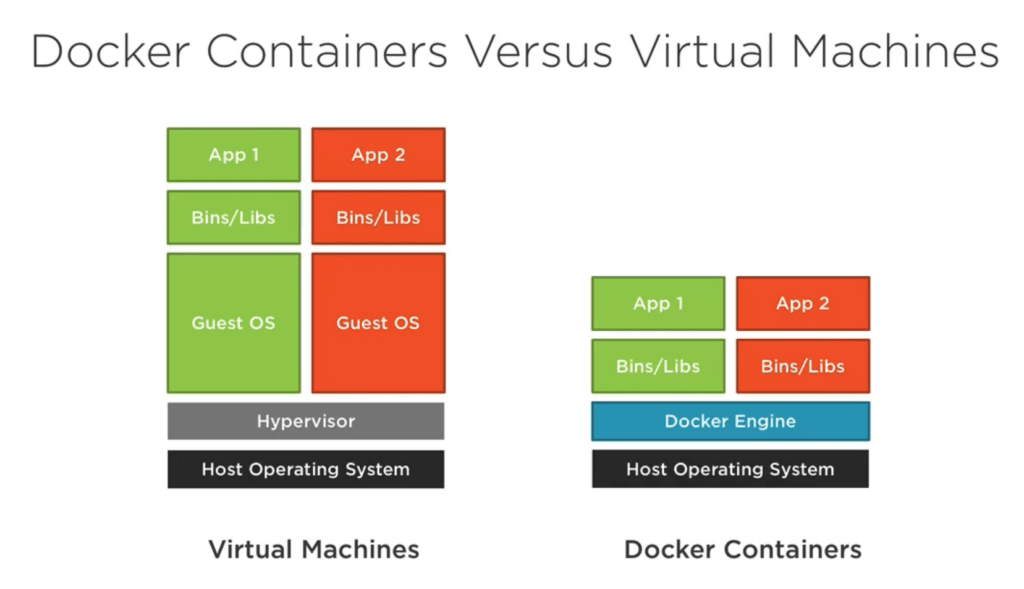

• VMs vs Docker Containers
  • There isn’t a copy of the Guest OS for each app
  • Because of a VMs size, it can take a long time to start compared to containers

Docker Benefits

• Accelerate Developer Onboarding
  • installing a full stack on a new hire’s computer is tedious and you can’t be sure that everything will play well in the new environment
• Eliminate App Conflicts
  • You can have and run different versions of software without conflict
• Environment Consistency
  • Movement from Dev to Staging to Production is seamless. If it runs on dev, it will run on production
• Ship software faster
  • Predictability
  • Consistency

Common Docker Commands

Note that [container id] and [container name] are interchangeable in docker commands. So are [image id] and [image name]

Also note that you only need to enter enough of the [container id] or [image id] for docker to differentiate between containers; you can indeed only use the first couple characters.

• docker pull [image name] to download an image from DockerHub
• docker run [image name] will run an image. Common flags are described below.
  • Anything written after the container name is run as a command into that container.
  • -p [external port]:[container port] too route ports in/out of the container
  • -v <path/in/container> will create a random UUID volume connected to that path. This is explained later.
  • -v <path/in/host>:<path/in/container> created a bind-mount style volume. This is explained later.
  • -w <working/directory> will set the working directory for any command that you want to run. This is explained later.
  • -it will link your shell to the docker container’s shell after executing run. This is also called “interactive mode”. You’ll need to run a command like /bin/bash after the container name in order to get a shell into the machine that you can use.
  • -d runs the container in “daemon mode”, in the background
  • -n <name> will assign a name to that container
  • --link <name>:<internal alias> will link the network of this container to the name of another container. This is not needed if using a custom network. This is explained later.
  • --net=<network name> will run the container in an already existing custom network.
• docker images to list images and basic facts
• docker ps to list running containers (add -a to see stopped ones too) and basic facts
• docker rm [container id] to delete a container (but not the image)
  • -v will delete all docker-made volumes that the container was using. You don’t want to run this until this is the last container using this volume. Volumes are explained below.
• docker rmi [image id] to delete an image
• docker exec <container name> <command> will execute a command in a container. This can be combined with the aforementioned -it flag to get a shell in an already running container.
• docker network create --driver bridge <network name> will create a custom bridge network that you can run containers in

Hook Source Code into a Container

Note that I may use $(pwd) in some commands as a way to get the current working directory. This is the syntax on Linux and Mac. This is different on Windows and DOS. In PowerShell, it would be ${PWD}, for example.

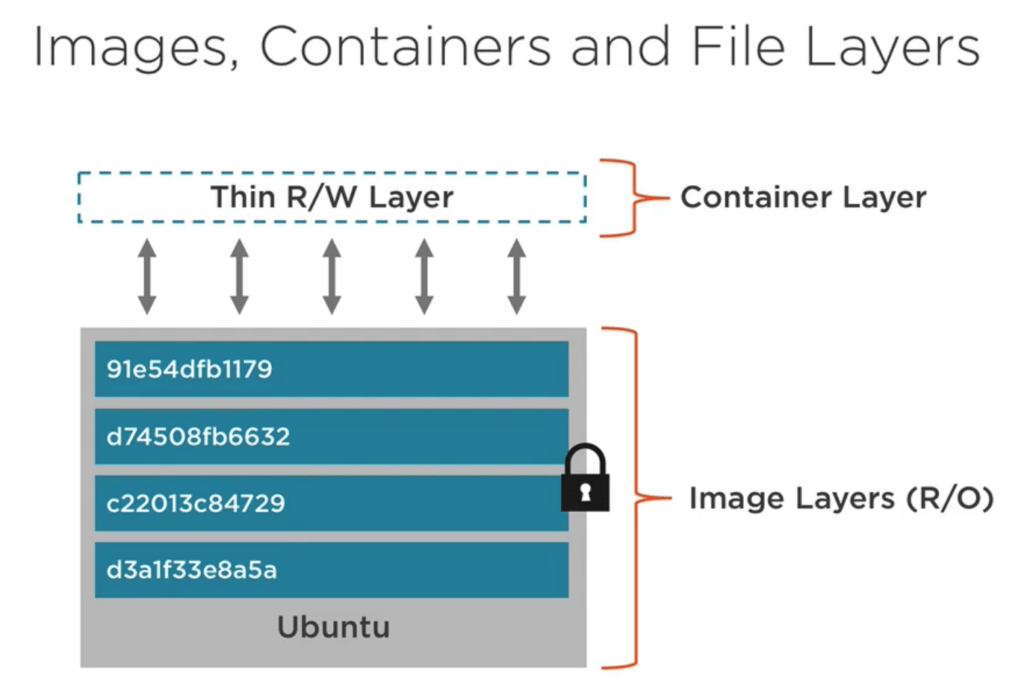

• Docker uses a layered file system
  • Each layer in an image is read-only
  • A container adds a thin read/write layer on top of the read only image layers. This thin layer is the difference between an image and a container.
  • Containers can share image layers! So you don’t need a new copy of the file system if you need multiple containers of the same image.Taking it a step farther, if one specific layer is used in multiple images, that layer does not need to be pulled down from DockerHub, thus saving even more space.
  • You could put your code into the thin read-write layer…but even better is to use a volume.

• Volumes are used for persistent storage across container creation/deletion.
  • Typically referred to as a Data Volume
  • Multiple containers can read-write to the same volume simultaneously.
  • Any updates to am image don’t change the volume
  • Data volumes are persisted even after the container is deleted.

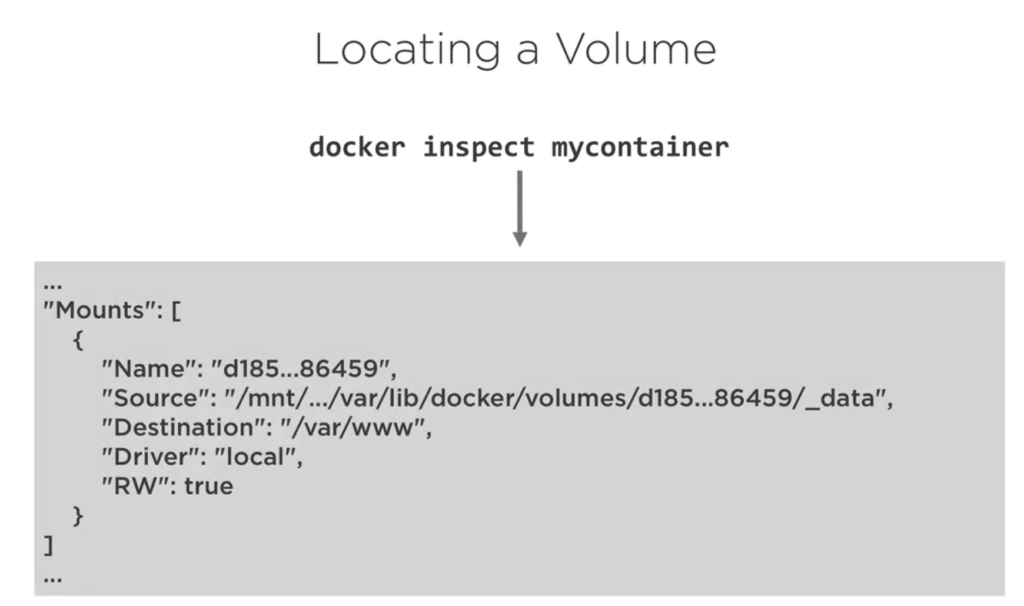

  • Volumes just act as aliases to folders on the Host
  • Without a volume, any changes in docker are not saved
  • Let Docker create a data volume for you by adding -v <path/in/container> to your docker run command. Docker will make a random UUID for a volume and store it in a place of its choosing. You can see where this new container is by running docker inspect <container name>. On linux it will be in /var/lib/docker/volumes/
  • Customize the volume be adding your own folder path. Add -v <host/path>:<path/in/container to your docker run command. Example: docker run -p 8080:3000 -v $(pwd):/var/www node will create a volume in the current working directory.
  • Source code can thus live on your host but be passed into a container with a volume

• You can link your code into a Container using the current working directory (as seen two bullet points ago).
• Anything written after the image name in the docker run command are commands that will be executed in the container on start. So, docker run -p 8080:3000 -v $(pwd):/var/www node npm start will run npm start in the node container on boot.
  • However, npm start wouldn’t be run in the current folder! You can use the -w flag in docker run to specify that you want to set the Working directory for the commands that are about to be run. So -w <path/to/run/commands/in> will run npm start in that folder.

Building Custom Images with Dockerfile

• Think about images as being a type of pre-built – or compiled – code. How can you how compile your own image? With docker build and a Dockerfile
• The Dockerfile is a text file with pre-defined docker commands in it. These commands are documented on Docker’s website.
• You can name this file whatever you want, really, but you’ll need an extra flag (-f <filename>) in docker build
• BASIC FORMAT:
  • FROM (what image to use as your base, to build upon)
    • without a version number on the end, :latest is implied
  • LABEL (specify things like who owns or maintains the image)
  • RUN (will run commands on the container)
  • COPY (can copy things like source code into the container)
  • ENTRYPOINT (what is the initial starting point for the container. This is a command split up into a json array. This is different from RUN because it runs after the container will is made, not before, like RUN.)
  • WORKDIR (set context directory for next commands)
  • EXPOSE (will expose a port)
  • ENV (defines environment variables to be used in the container)
  • VOLUME (define the volume and how it stores data on the host system)

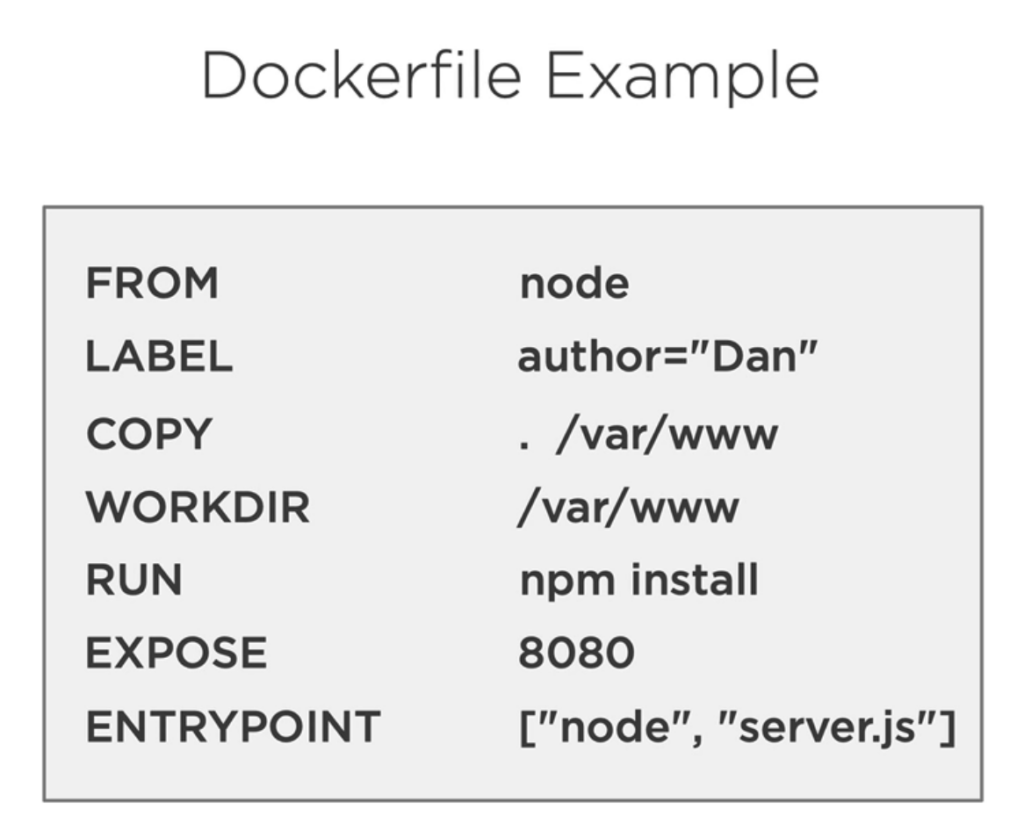

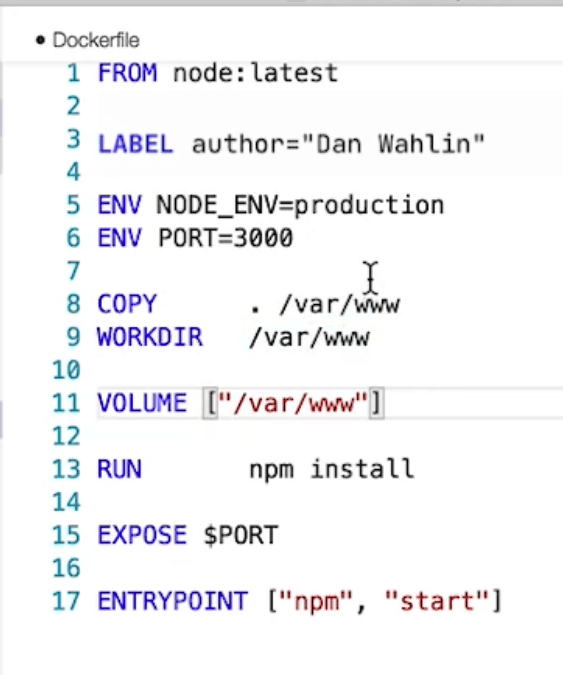

• Examples:

• Build the image with docker build -t <your username>/<image name>:<optional version info> .. The -t stands for “tag”
• Every command in Dockerfile creates an “intermediate container” which are cached behind the scenes so each new build won’t need to take nearly as long as the first one!
• You can push your image to a registry with docker push <your username>/<image name>. You may need to login to the registry; docker login will do this.

Communicating between Docker Containers

• There are two ways to link containers
  • Legacy Linking – using container names.
    • To add a name to a container, use the -n <name> flag to docker run
    • On the second container, you’ll need the --link <name>:<internal alias> flag. The name same name as the first container in order to link it. The internal alias is a name that the second container can use internally instead of using the original name.
  • Custom Bridge Network – isolated network where only containers in the network can communicate with each other.
    • Basic idea: create a custom bridge network, then run containers in that network
    • You can create a new bridge network with docker network create --driver bridge <network name>
    • For each container you’d like to run in that network, use --net=<network name> flag in the docker run command. Make sure to name this container with --name <name> so that other containers know which hostname they can use to connect to it.
    • You can see all containers connected to a network with docker network inspect <network name>

Managing Containers with Docker-Compose

• Provides a great way to get multiple containers up and running, named, connected, and configured with a single command
• In docker-compose context, a container in a docker-compose “stack” is called a “service”
• docker-compose manages the whole application lifestyle
  • Start, stop, and rebuild services
  • View the status of running services
  • Stream the log output of running services
  • Run a one-off command on a service

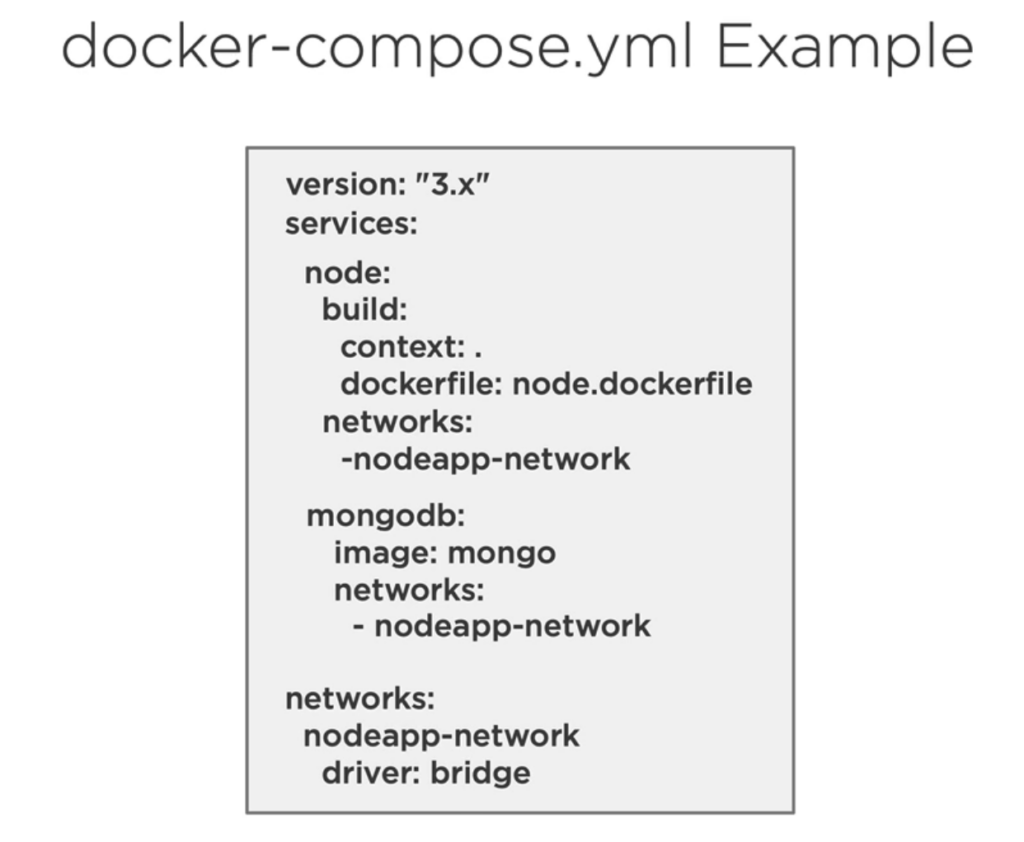

• Theres a single file that controls it : docker-compose.yml
• BASIC FORMAT:
  • version: (version of docker-compose)
  • services: (define what containers you want to be running)
    • build: (build context for this service container)
      • context: (which folder to use for building)
      • dockerfile: (name of dockerfile to use to build service container)
    • container_name: (name the container
    • environment: (define environment variables)
    • image: (which image to use if not using “build”)
    • networks: (which network to connect to)
    • ports: (which ports are exposed)
    • volumes: (how volumes will be mounted in the service container)
  • networks: (what networks to create for this stack)
    • <network name>: (name your network)
      • driver: (driver the network will use, ie. bridge)
  • volumes: (which volumes to create for this stack)
    • <volume name>:

• docker-compose commands:
  • docker-compose build will build everything but not run it
    • You can add the service container name to the end to build only one service
  • docker-compose up will create and run every service container (and build it if not done already)
    • The --no-deps <service name> flag will create and bring up a single service and leave out any service that it may depend on. This “depends on” relationship is part of the docker-compose.yml file. This is especially useful when you’re rebuilding a service but don’t want to rebuild other ones (which would effectively take them out of commission for the time they are building)
    • You may want the -d flag for daemon mode to run the stack in the background
  • docker-compose down will tear down all the services and remove them. Use stop instead if you don’t want to remove the service containers.
    • --rmi <"all" or image name> flag will even remove all or one of the images
    • --volumes flag will delete any volumes the services were using
  • docker-compose logs will show the logs for all the services. This will look the same as docker-compose up as far as what is displayed if docker-compose up is run without -d , daemon mode. Unlike docker-compose up, it is safe to use Ctrl+C to exit without stopping the stack.
  • docker-compose ps will show you the running services
  • docker-compose stop will stop all the different services
  • docker-compose start will start all the different services
  • docker-compose rm will remove all the services

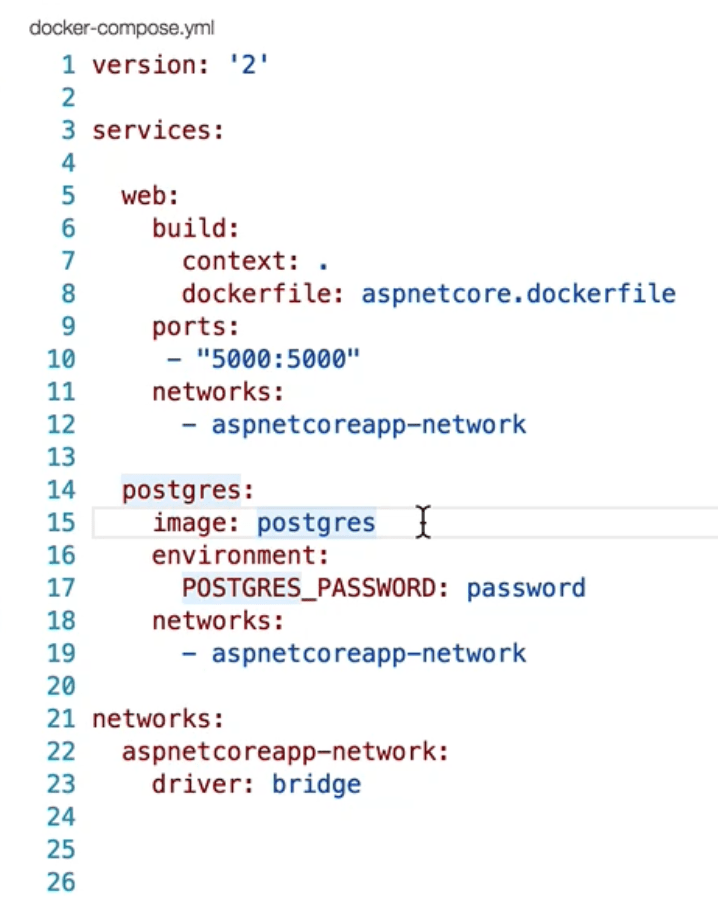

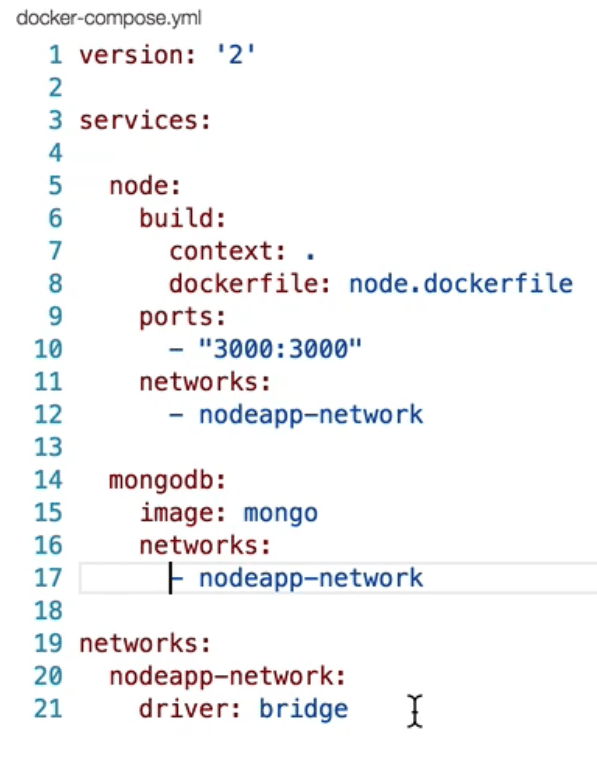

• Examples:

Moving to Kubernetes

• Docker-Compose doesn’t do everything we might need in production…
  • How can we scale, run, and manage containers without the nitty-gritty commands?
  • Docker-Compose does have a scaling feature (and the ability to restart containers if they fail), but it does not do load balancing. In production, you might want something more robust.

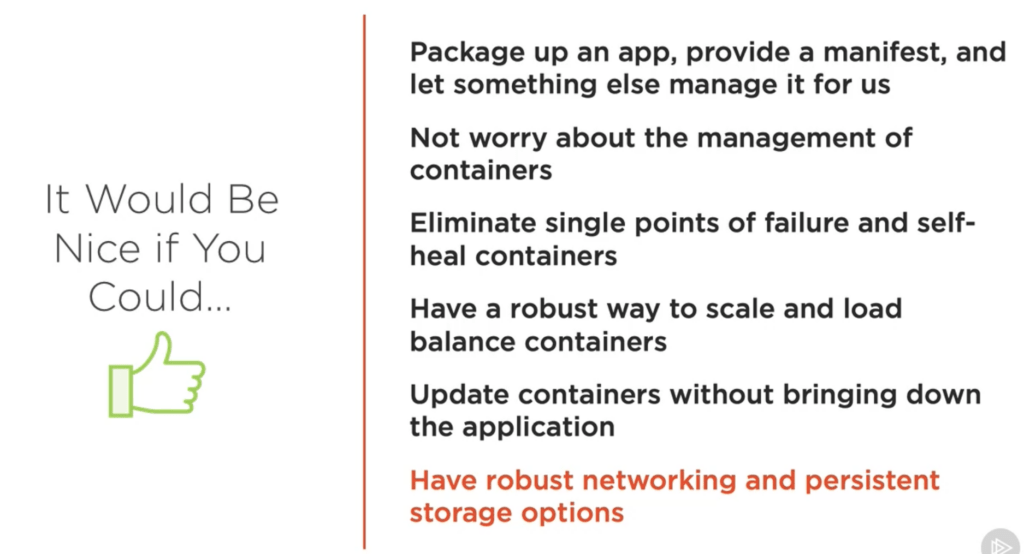

• What if we could define the containers we want and then hand if off to a system that manages it all for us? This is Kubernetes.

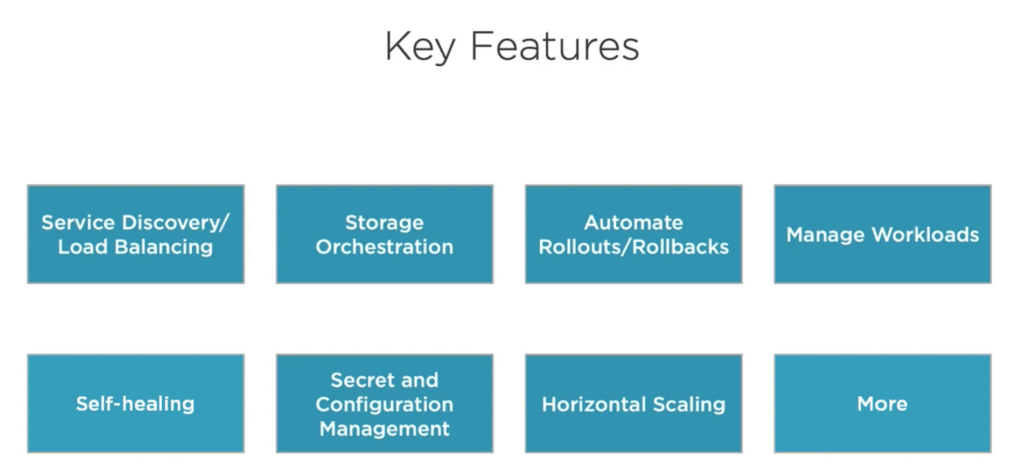

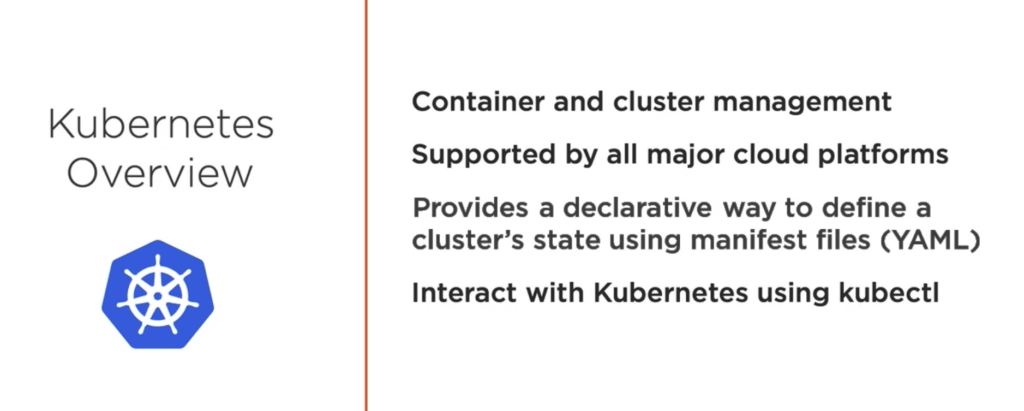

• Kubernetes is an open-source system for automating deployment, scaling, and management of containerized applications.
• Kubernetes is the conductor of a container orchestra

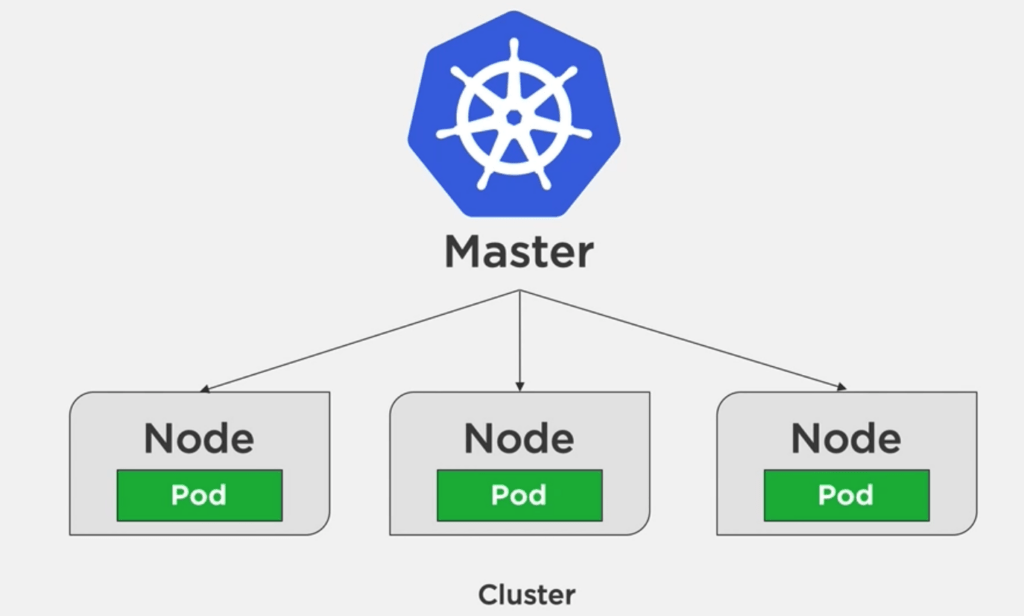

• A Kubernetes “cluster” has a “Master” node that directs the worker nodes

• Worker nodes are VMs that contain “pods”, which contain containers

• You can setup Kubernetes locally with

  • Minikube, or
  • Docker Desktop (has Kubernetes support by flipping one switch)
    • Go to Docker Tray Icon > Preferences or Settings > Kubernetes > Enable Kubernetes

• Kubernetes Key Concepts:

  • Deployment
    • Describe the desired state
    • Can be used to replicate pods
    • Support rolling updates and rollbacks

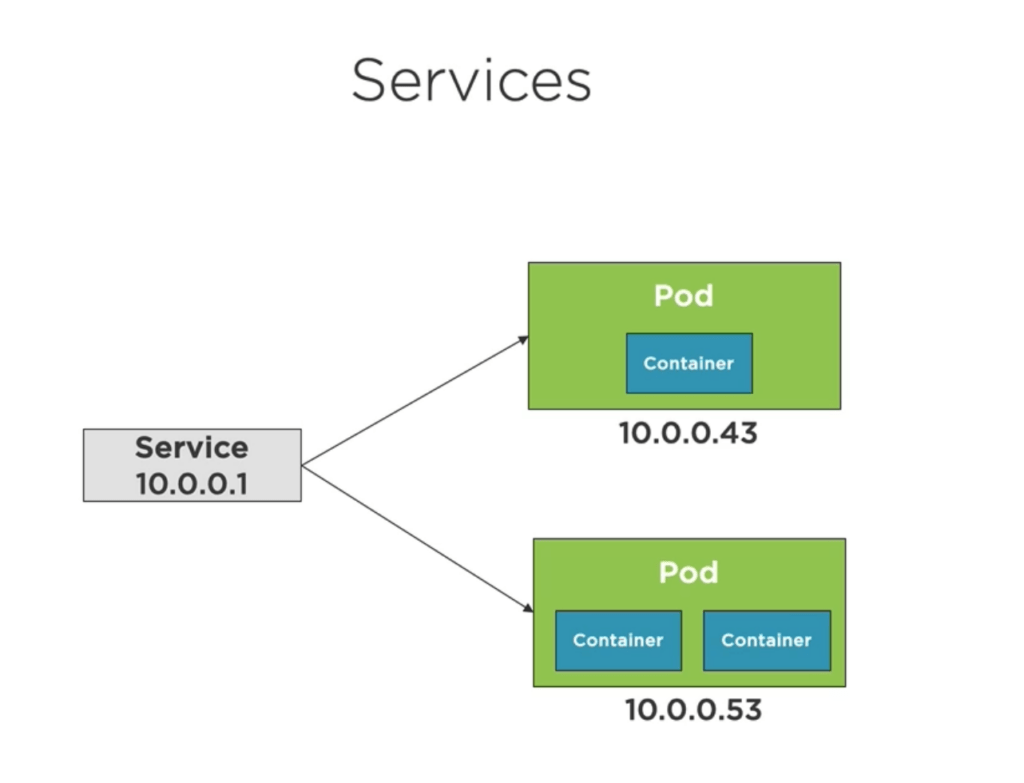

  • Service
    • Pods can live and die, we can’t rely in their ip addresses or which worker node they’re stored on
    • Services can abstract pod IP addresses from consumers.
    • Load balancing between pods
    • A service has a ip address, but so does a pod. A consumer of the pod will need the service ip so that it can have a connection to the pod, even after the pod moves and changes IPs.
    • Thus, the networking is abstracted for the consumer, because all they need to know is the service ip which does not change.

• In summary, for each type of image in a cluster stack, there will be one service container and one or more deployment containers.

• You can convert from docker-compose to Kubernetes in a couple ways…
• You can use Docker Desktop, called “Compose on Kubernetes”
  • Pre-installed on Docker Desktop
  • Uses docker “stacks”
  • Docker has its own solution for Kubernetes called Docker Swarm, but Docker Desktop supports Kubernetes nonetheless.

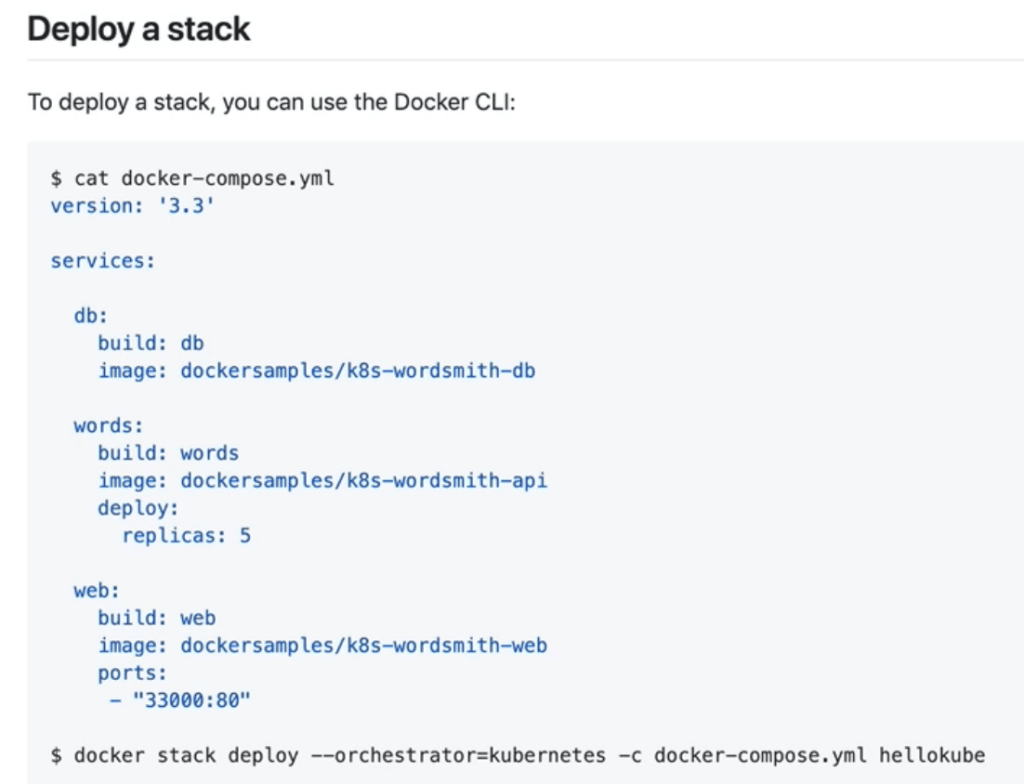

  • You can deploy a stack with a docker-compose file with docker stack deploy --orchestrator=kubernetes -c <docker-compose file name> <stack name>
  • Notice the deploy: and replicas: keywords in the docker-compose.yml. This can set how many of each container you’d like

• You can also use an open-source project called Kompose, which you’ll need to install yourself follow instructions on kompose.io
  • Convert a docker-compose.yaml file with kompose convert.
    • You can add the --out <file name>.yml flag to get everything kompose will create into a single file instead of many.
  • This will create many files for Kubernetes to work with – mainly deployment and service files for each type of container
  • In deployment files, the replicas: keyword is also present to define how many of each container is wanted
  • In service files, the port: keyword is set so that the service can connect to that pod on the right port whenever a consumer asks the service for data.
• Common Kubernetes Commands
  • kubectl version to get version
  • kubectl get [deploy | services | pods] will get you information for each. This is how you can see the names and other info in your cluster
  • kubectl run <name> --image=<image name>:<image version> to get a specific container up and running
  • kubectl delete deployment <pod name> will delete single deployment (or set one or more containers in a pod)
  • kubectl apply -f [fileName | folderName] to run all the containers specified in the config file(s)
  • kubectl delete -f [fileName | folderName] to delete all the pods specified in the config file(s)
  • kubectl port-forward <name of pod> <external port>:<internal port>
• There are many Pluralsight courses on Kubernetes to get you started on it.
